Product Description

Brand:NSK

Item Number:NU314H52MR1C4EP6X265U5UY NSK

Category:Cylindrical Roller Bearing Single Row

Weight and Dimensions

Inner (d) MM:70.00

Outer (D) MM:150.00

Width (B) MM:35.00

Weight (kg):3.08

Suffix description

MR1:Two-Piece Machined Brass Cage, Roller Centered

C4:Internal Clearance Larger Than Normal

H52:Electrical Resistance: Min. 50MΩ, Breakdown Voltage: Max. Operating Voltage 1.000v DC

Product description

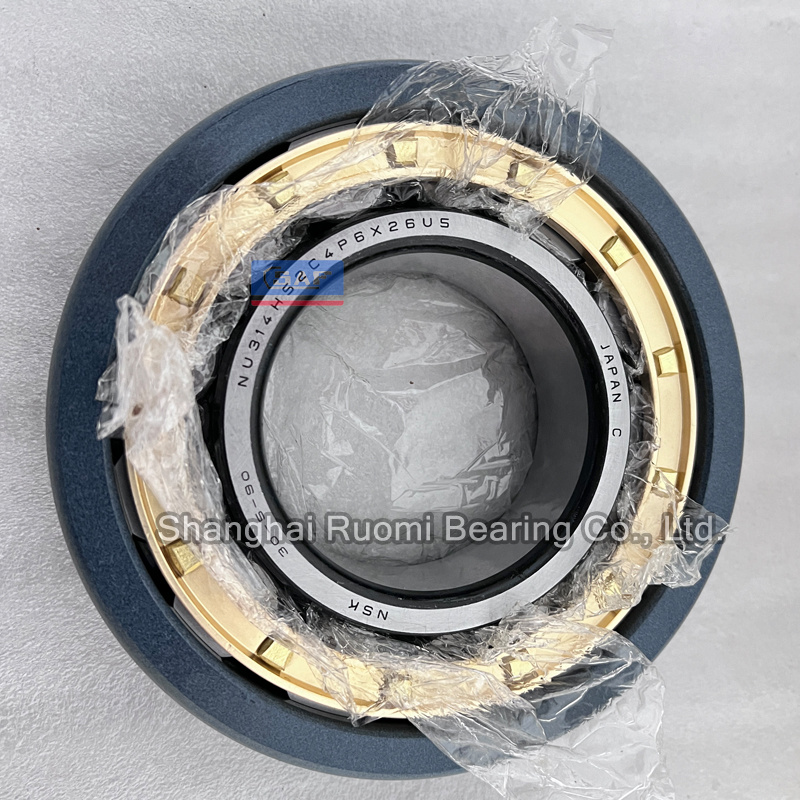

The NU314H52MR1C4EP6X265U5UY NSK is a single-row cylindrical roller bearing with cage. This bearing consists of a solid inner and outer ring with cylindrical rollers in a cage. This cage prevents contact between the cylinder rollers, so this bearing type can support higher speeds than full-complement cylinder roller bearings. Also, single-row cylindrical roller bearings with cages are very rigid and they can take high radial forces. As the inner and outer rings of these bearings can be easily disassembled, they are very easy to install. Applications of single-row cylindrical roller bearings include gearboxes, agricultural machinery, pumps, compressors, and electric motors.
