Product Description
|

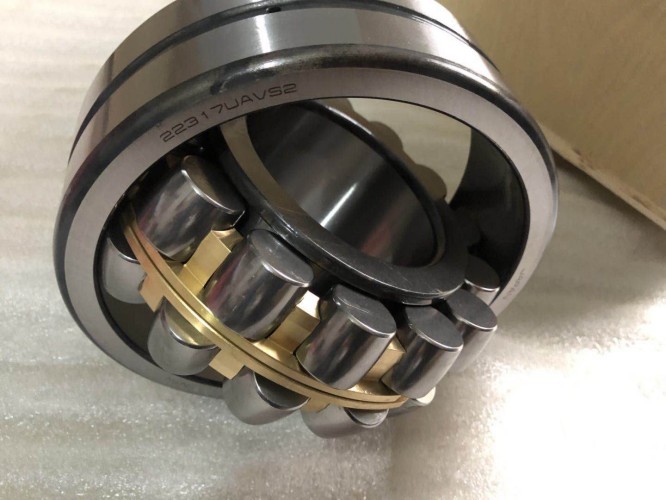

Brand:NTN |
|
Item Number:22317UAVS2 NTN |
|
Also known as |
|
22317EAS.MA.T41A |
|
22317EJA/VA405 |
|
22317YM W33 W800 C4 |
|
Category:Spherical Roller Bearing |
|
Weight and Dimensions |
|
Inner (d) MM:85.00 |
|
Outer (D) MM:180.00 |
|
Width (B) MM:60.00 |
|
Inner (d) Inch:3.3465 |
|
Outer (D) Inch:7.0866 |
|
Width (B) Inch:2.3622 |
|
Weight (kg):6.81 |
Suffix description
UA:Designed For Heavy Load Applications
VS2:The Clearance Range Is Similar To C4, But The Lower Third Of The C4 Range Is Eliminated For Better Control Of The Bearing Clearance After Mounting
Product Properties
Bore:C - Cylindrical Bore
Lubrication Enhancement:W33 - Lubrication Groove and 3 Holes
Seal:No Seal
Cage Type:S - Steel or Standard Cage
Radial Internal Play:C4 Internal Play (Higher than C3)
Precision:Standard Precision
Heat Stabilization:No Heat Stabilization - Temperatures up to 120 °C
Vibrating Screen Execution
Vibrating Screen Execution
