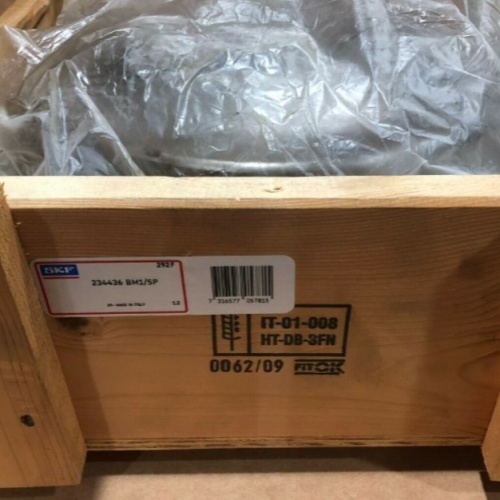

Enhanced Performance 234436 BM1/SP SKF & FAG Dual Direction Axial Angular Contact Bearings - Separable with Restricted Tolerances
+
  • Enhanced Performance 234436 BM1/SP SKF & FAG Dual Direction Axial Angular Contact Bearings - Separable with Restricted Tolerances

Enhanced Performance 234436 BM1/SP SKF & FAG Dual Direction Axial Angular Contact Bearings - Separable with Restricted Tolerances

Category：

Enhanced Performance 234436 BM1/SP SKF & FAG Dual Direction Axial Angular Contact Bearings - Separable with Restricted Tolerances

Enhanced Performance 234436 BM1/SP SKF & FAG Dual Direction Axial Angular Contact Bearings - Separable with Restricted Tolerances

WhatsApp:+8613585510566

Email:sales@rm-bearing.com

Message

Product Description

Brand

FAG

Item Number

234436-M-SP FAG

Manufacturer Part Number

0384397780000

EAN

4012801487924

Category

Angular Contact Thrust Ball Bearings, Double Direction

Weight and Dimensions



Inner (d) MM

180

Outer (D) MM

280

Width (B) MM

120

Inner (d) Inch

7.0866

Outer (D) Inch

11.0236

Width (B) Inch

4.7244

Weight (kg)

23.4

Suffix description

M

Solid Brass Cage, Ball-Guided

SP

Super Precision Specification, Tolerance Class SP, Radial Clearance C1

Data from Schaeffler (medias)

Width (b) mm

120

Axial Static Load Rating C0a (N)

840000

Axial Dynamic Load Rating Ca (N)

235000

Limiting speed for grease lubrication (n G Grease)

2000

Limiting speed for oil lubrication (n G Oil)

3000
