NTN Bearing 6202 High Quality Ball Bearing High Quality 6202 Deep Groove Ball Bearing

It consists of an outer ring, an inner ring, a set of steel balls and a set of cages. It mainly bears pure radial loads, but also can bear joint loads. We have three seal types：ZZ type、2RS type、Open type.

Category：

Deep Groove Ball Bearings

WhatsApp:+8613585510566

Email:sales@rm-bearing.com

Message

Product Description

It consists of an outer ring, an inner ring, a set of steel balls and a set of cages.

It mainly bears pure radial loads, but also can bear joint loads. When it is subjected to pure radial load, its contact Angle is zero. When it has a larger radial game, that is, it has angular contact bearing performance, which can withstand a larger axial load. Deep groove ball bearing has small friction coefficient and high limit speed, so it has more advantages than thrust bearing when axial load is rotating at high speed. But because its aligning performance is limited, the concentricity of bearing installation should be high, otherwise it will affect the balance of its operation, increase the bearing stress, and thus shorten the working life.

Deep groove ball bearing simple structure, compared with other easy to achieve high precision, so can be mass production. In addition to the conventional models, it also has a variety of structural variations, such as deep groove ball bearing with dust cover, deep groove ball bearing with rubber ring and deep groove ball bearing with a stop groove and so on.

Material: Bearing steel （GCr15）
Seal Type:

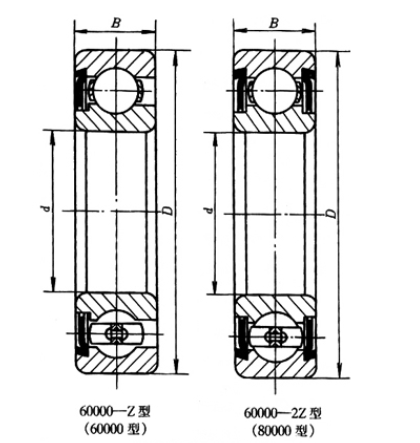

ZZ type ---- Bearing is sealed by steel on both sides.

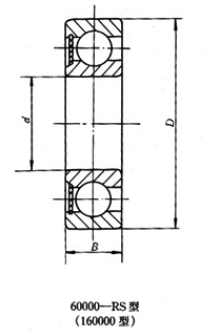

2RS type ---- Bearing is sealed by black, blue or other colful rubber on both sides.
Open type ---- Bearing comes without seal on any side.

Part of model bearings that we supply ( If you fail to find the one you need, please contact us directly):

Deep groove ball bearing (ZZ, 2RS ,Z ,RS)

604 series :605 606 607 608 609

623 series: 623 624 625 626 627 628 629

634 series: 634 635 638

61800 series: 61800 61801 61802 61803 61804 61805 61806 61807 61808 61809 61820 61821 61822 61824 61826 61828 61834 61838 61840

61852 61860 61864 61872 61876 61880 61888 61892

61900 series: 61900 61901 61902 61903 61904 61905 61906 61907 61908 61909 61910 61911 61912 61913 61914 61915 61916 61917 61918

61919 61920 61921 61922 61924 61926 61928 61934 61936 61938 61940 61944 61948 61952 61960 61964 61968 61980 61984 61988 61992

16001 series: 16002 16003 16004 16005 16006 16007 16008 16009 16010 16011 16012 16013 16014 16015 16016 16017 16018 16019 16020

16021 16022 16024 16026 16028 16030 16032 16034 16038 16040 16052

6000 series: 6000 6001 6002 6003 6004 6005 6006 6007 6008 6009 6010 6011 6012 6013 6014 6015 6016 6017 6018 6019 6020 6021 6022

6024 6026 6028 6030 6032 6034 6036 6038 6040 6044 6048 6052 6056 6060 6064 6068 6072 6080 6088 6092

6200 series: 6200 6201 6202 6203 6204 6205 6206 6207 6208 6209 6210 6211 6212 6213 6214 6215 6216 6217 6218 6219 6220 6221 6222

6224 6226 6228 6230 6232 6234 6236 6238 6240 6244 6248 6252

6300 series: 6300 6301 6302 6303 6304 6305 66306 6307 6308 6309 6310 6311 6312 6313 6314 6315 6316 6317 6318 6319 6320 6321 6322

6324 6326 6328 63306332 6334

6403 series: 6403 6404 6405 6406 6407 6408 6409 6410 6411 6412 6413 6414 6415 6416 6417 6418 6419 6420 6422 6426

Model	d mm	D mm	H mm	W kg	Dynamic	Static
6200	10	30	9	0.032kg	5100	2400
6201	12	32	10	0.036kg	6800	3050
6202	15	35	11	0.044kg	7650	3750
6203	17	40	12	0.065kg	9550	4800
6204	20	47	14	0.11kg	12800	6650
6205	25	52	15	0.13kg	14000	7850
6206	30	62	16	0.21kg	19500	11300
6207	35	72	17	0.288	25700	15400
6208	40	80	18	0.368	29100	17800
6209	45	85	19	0.416	32700	20300
6210	50	90	20	0.463	35100	23300
6211	55	100	21	0.603	43500	43500
6212	60	110	22	0.789	52500	52500
6213	65	120	23	0.99	57500	40100
6214	70	125	24	1.084	62000	62000
6215	75	130	25	1.171	67400	66000
6216	80	140	26	1.448	72700	72500
6217	85	150	28	1.803	84000	64000
6218	90	160	30	2.71	96100	71500
6219	95	170	32	2.62	109000	82000

Characteristics and application of 6202 bearing:

1. 6202 bearing adopts steel ball rolling, low friction, low noise, long life.

2. The 6202 bearing adopts the steel ball separator inside, so that the distance between the steel balls is uniform and the friction is small, which can bear both radial load and axial load.

3. The structure of 6202 bearing is simple and easy to disassemble and maintain.

4. The size of 6202 bearings is standardized and can be used interchangeably with other types of bearings.

Application:

6202 bearings are used in softening water equipment, variable speed machine, dewatering equipment, plastic granulator, brewing equipment, tower crane, metering pump, impact testing machine, chemical experiment equipment, folding machine, medicine cutting machine, bottom pressing machine, dust cloth, sifting machine, paint baking equipment, etc.

Factory Appearance

The factory mainly produce Tapered roller bearing, Deep groove ball bearing, Wheel hub bearing, Clutch release bearing, Pillow block bearing, etc. After ten years in the global market, Yajun Bearings get a high reputation among following Countries and regions: Russia, Algeria, Egypt, Italy, Korea, Mexico, Brazil, South Africa, Turkey, Iran, Pakistan, Singapore, Philipphines, USA and so on.

Welcome all of customers visit our factory and cooperate for mutual benefit.
